R90-EX-U Temperature - Humidity Data Logger

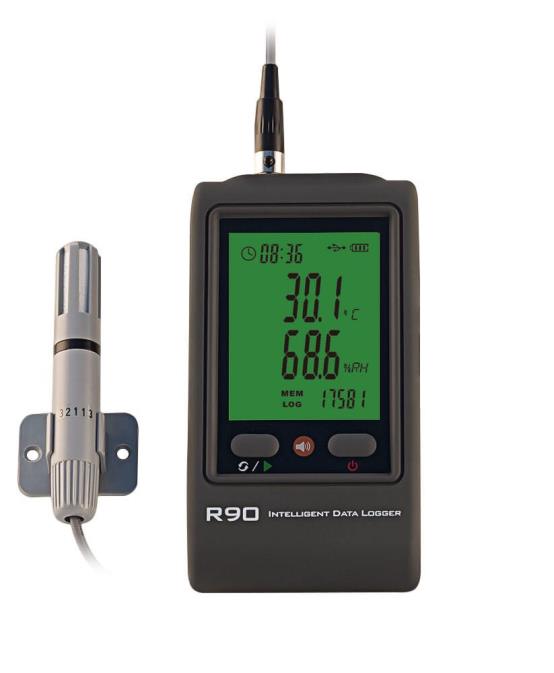

R90-EX-U Temperature &humidity data logger with external sensor
R90 USB series data logger is a kind of simple sound and light temperature humidity data logger, support desk-top, wall mounted and hand-held. Adopt high accuracy sensor, high-energy rechargeable battery and ultra-wide temperature range monitoring as well as HD clear LCD display. Sample interval, log interval, high and low limits etc, all can be set via Loglive. Data can be exported as PDF, BMP and text, also can be graphed directly on software.
Features:
High reliability and stability, suitable for industrial-grade applications;
For high and low temperature measurement.
With LogLive software supported and data analysis.
USB interface and easy to use
|
Specifications |
|||
|
Model |
R90-TH-U |
R90-EX-U |
R90-DX-U |
|
Probe Type |
Internal |
External |
2*External |
|
Measurement Range |
-20 to 70℃ 0 to 100%RH |
-40 to 100℃/0 to 100%RH |
|
|
Accuracy |
±0.3℃/±3%RH |
||
|
Resolution |
0.1℃(0.2℉) / 0.1%RH |
||
|
Memory Capacitiy |
65000 points |
||
|
Sample Rate |
1s to 24h |
||
|
PC Software |
LogLive |
||
|
Power Supply |
Rechargeable Libattery (2600mA)/5V 1A adapter |
||
|
Dimensions |
140mm×76mm×28mm |
||
|
Weight |
about300g |
||
|
Customization Demands |
accuracy / external probe length / recording capacity |
||
Standard Accessories: Adapter, USB Cable ,User Manual, Soft CD, Screws
Applications :Pharmacy, vaccine management, cold-chain, refrigerator industry, transportation, HVAC, agricultural planting, warehouse and service room etc.
