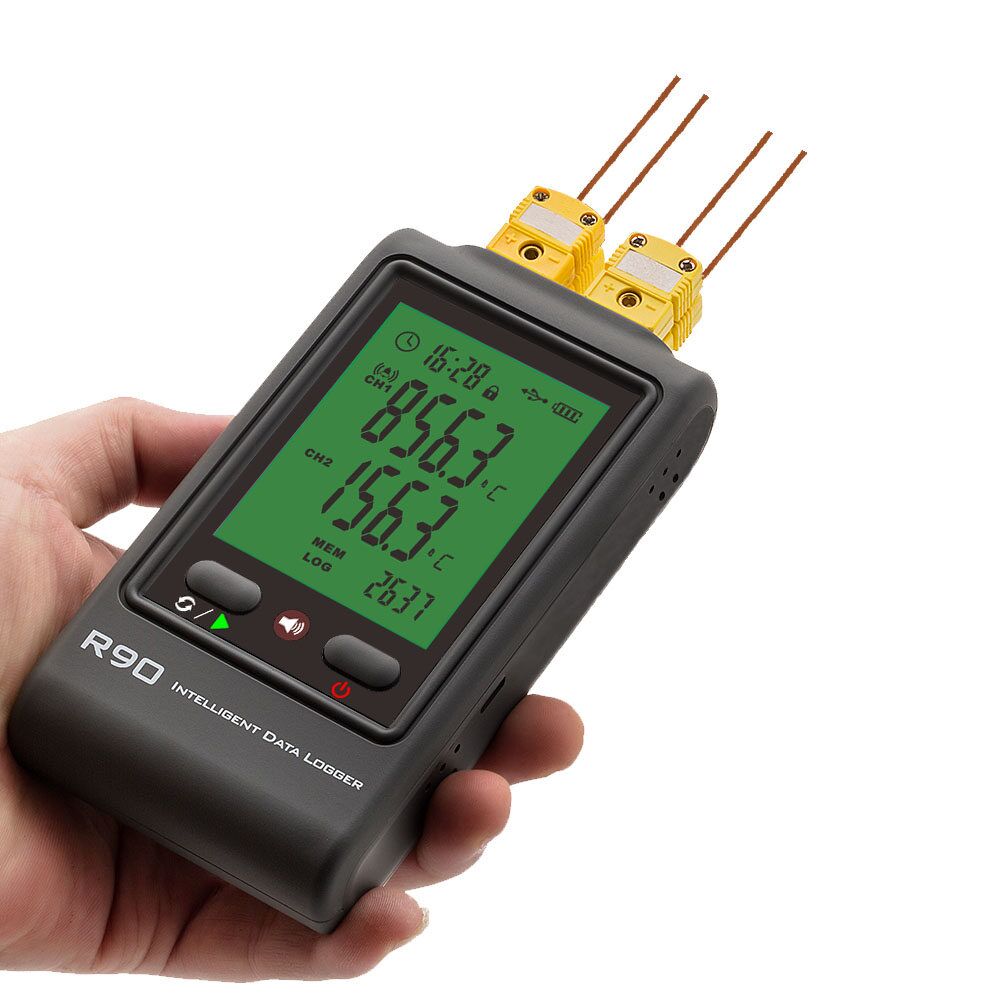

R90-FC-U Four Channels Thermocpouple Temperature Data Logger
R90 Thermocouple data logger series
R90-U K series data logger is a helper for environment temperature measurement; compact, portable, accurate and reliable. Enjoy wide temperature range; support K/T/J/R/S/E/N/B different thermocouple and suitable for air/surface/liquid various applications. Widely used for high/low temperature environment, such as ultra-low freezing room, high temperature oven, steel plants etc; This R90-U K series definitely can help you with reliable temperature
measurement and data records.
Features:
High reliability and stability, suitable for industrial-grade applications;
For high and low temperature measurement.
With LogLive software supported and data analysis.
Easy to use and elegant appearance with large LCD display
Multi-channel for different option
MAX/MIN and Year/month/date
Lock and unlock with buttons manually
Rechargeable battery and data stored still even battery spent
USB port connect to PC; LogLive supported to finish setup easily
Built-in sound- light alarm function
CE certified
USB interface and easy to use.
First letter of the instrument name is the sensor type; default is K.
(K/J/T/R/S/E/N/B is namable via software);
|
Model |
R90-EC-U |

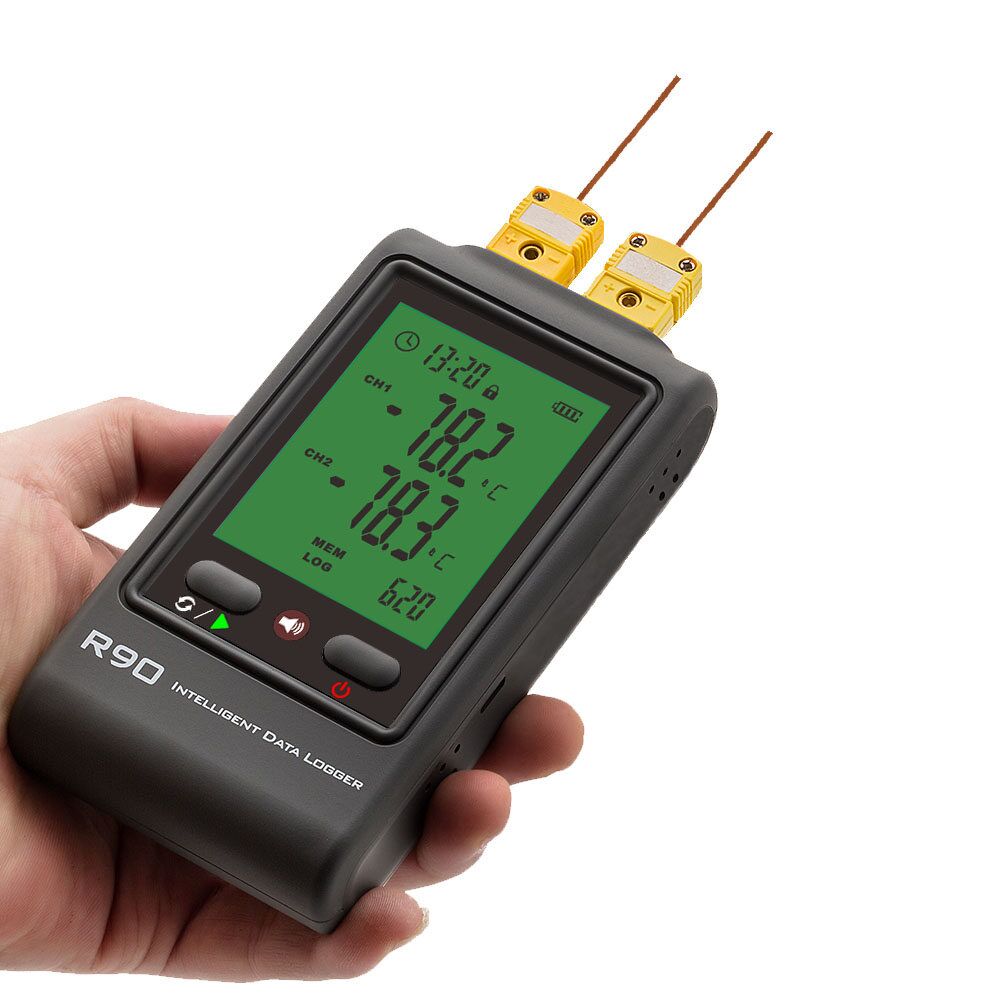

R90-DC-U |
R90-FC-U |
|
Probe type |
Single-channel |
Dual-channel |
Four-channel |
|
Measurement range |
K-type: -200 to 1370℃(-328 to 2498℉) |
||
|
Accuracy |
±0.5 °C (-50 ~ +70 °C) / ±0.7 %( + 70.1 ~ +1000 °C) |
||
|
Resolution |
65000 readings/channel |
||
|
Capacitiy |
1s~24hours |
||
|
Sample rate |
LogLive, USB driver (included in CD) |
||
|
PC software |
5V 2A adapter |
||
|
Power supply |
Li-ion rechargeable 3.6V/2600mAh |
||
|
Dimensions |
140mm×76mm×28mm |
||
|
Weight |
About 200g |
||
Standard Accessories: Adapter, USB Cable, User Manual, Software CD, Screws
Optional Accessories: K/T/J/R/S/E/N/B thermocouple sensor
Applications : R90-U K series is widely applied for high/low temperature measurement; such as workshop, laboratory, pharmacy and food industry, ultra-low refrigeration industry, HACCP control industry,building automation field and various kinds of temperature monitoring environment.
